Sension+ PH1 DL Portable pH Meter with Data Logger, Field Kit with Electrode for General Puroposes

Sension+ PH1 DL Portable pH Meter with Data Logger, Field Kit with Electrode for General Puroposes
Product #: LPV2550TDL.97.2
USD Price:
Ships within 1 week
Qty in Cart:0

Data handling as simple as it can be.

Interval measurements, 500 Data point memory and wireless Data transfer to your PC.

Fast pH measurements

Fast performing electrode for drinking water and general aqueous samples.

Maximum simplicity: Sension+ kits come complete with everything you need to start testing.

Sension+ portable kits include meter, probe, carrying case and all required accessories.

Sension+ kits offer superior field usability

Sension+ carrying cases work as complete, portable labs.
Screw-on calibration tubes and probe storage tubes simplify use in field.

Designed for field use

IP67 - protected.

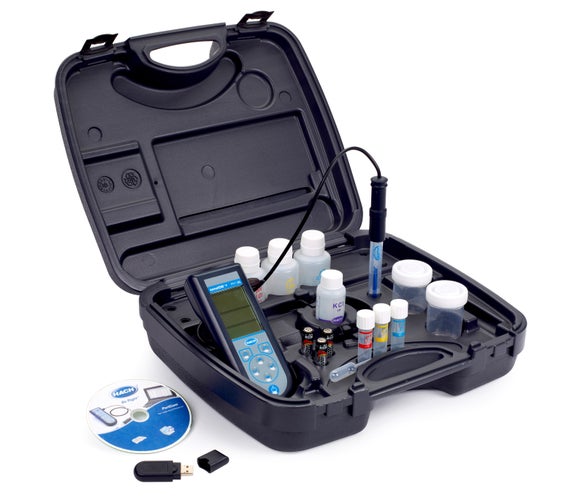

What's in the box?

Includes: Sension+ pH1 Data Logger meter, Data Logger USB dongle, CD with PortCom software ,Sension+ 5050T pH electrode with temperature sensor, Sension+ portable field carrying case, 125mL of pH4, pH7 and pH10 calibration standards, color coded screwable calibration tubes, sample and measurement containers, electrode storage solution and user documentation.


Accuracy: ORP: ±1 mV
Accuracy 2: -
Accuracy 3: -
AC Power Adapter and USB/DC Adapter: No
Automatic Buffer Recognition: pH 2.01, 4.01, 7.00, 9.21, 10.01
Barometric Pressure Measurement: -
Calibration Curves Display: Slope and assymetry potential displayed
Compliance Certifications: CE.WEEE; RTTE directive see NB opinion statement; FCC approval
Conductivity Accuracy: -
Conductivity measurement: -
Conductivity measurement: Temperature correction: -
Conductivity Measurement Range: -
Conductivity resolution: -
Dimensions (H x W x D): 38 mm x 74 mm x 186 mm
Display: Backlit LCD with pictograms
Display Type: 128 x 64 pixel, simultaneous readings
DO Measurement Range: -
DO Resolution: -
DO sensor calibration: -
Electrode stand: No
GLP Features: -
Height (Overall): -
Inputs: MP-5
Interface Languages: Icon based, no language needed
Internal Data Storage: 500 results
IP Rating: IP67
Languages: -
Manual Languages: Multi-lingual
Measurement Method: Interval, Auto stabilisation, continuous
Measuring Range ORP: ± 1999 mV
Model: pH1 DL
mV Resolution: 0.1 mV (0 - 200 mV) 1 mV (for rest of range)
Operating Humidity: < 80 % relative humidity (non-condensing)
Operating Interface: Keypad
Operating Temperature: 0 - 50 °C (32 - 122 °F)
Output: Wireless to USB
Parameter: pH, mV, ORP/Redox, Temperature
PC Data Transfer Software: Yes
pH Accuracy: ≤ 0.02 pH (± 1 digit)
pH Electrode calibration: 1 to 3 points calibration
pH Measurement Range: -2.00 - 19.99 pH
pH Resolution: 0.01 pH
Power Supply: Batteries (see Battery Requirements)
Pressure compensation: -
Probes included: Yes
Resolution: 0.01 pH
  0.1 mV (±199.9 mV range)
Salinity Measurement Range: -
Salinity Resolution: -
Simultaneous measurements: pH, Temperature
TDS Measurement Range: -
TDS Resolution: -
Temperature Accuracy: 0.2 °C (± 1 digit)
Temperature Compensation: Automatic or manual
  Automatic or manual
Temperature Measurement: -20.0 - 150.0 °C
(-4.0 - 302.0 °F)
Temperature Resolution: 0.1 °C (0.1 °F)
Warranty: 3 years
Water Resistance: IP67
Weight: 2.5 kg
